What is a CRT?
A CRT (Cathode Ray Tube) is a type of display that was dominant prior to not just the invention of LCD displays but the feasability of them at a large scale. These displays used a vacuum tube made of lead glass and 1-3 electron-firing guns at the back of the tube, aligned the path of their beams via magnets, and drew a picture onto phosphor painting the back of the glass tube. Do this roughly 60 times per second (60hz) and you have an NTSC television.
These displays have always been a huge interest of mine, I grew up with them my entire life. I had one of them as our main family TV as a little kid, and then my parents bought our first flatscreen after my brother was born, and that TV became my room's. Since then I haven't lived anywhere without either bringing a CRT with me or finding a new one to fill the void the old left.
My CRTs
Nowadays I have quite a few CRTs, and I decided to use this page to make a sheet of information about the sets I personally own. There's actually a better website dedicated to this, so I'm going to link to CRT Database when possible.
| Model# | Maker | Photo | Aspect | Resolutions | Inputs |
|---|---|---|---|---|---|

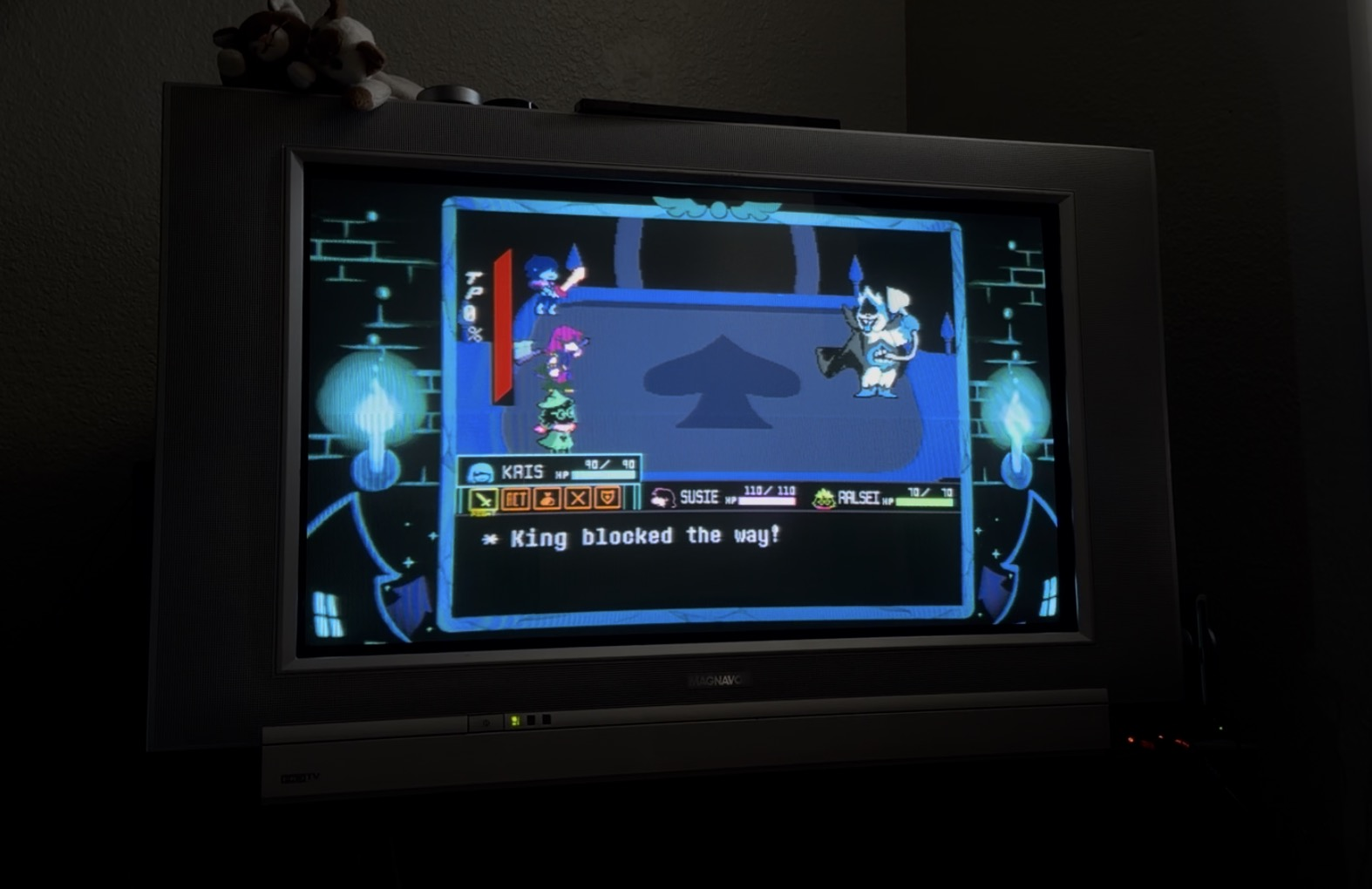

| 30MW5405 | Magnavox (Philips) |
|
16:9 30" | 540p 1080i |
RF Composite (x2) S-Video YPbPr |

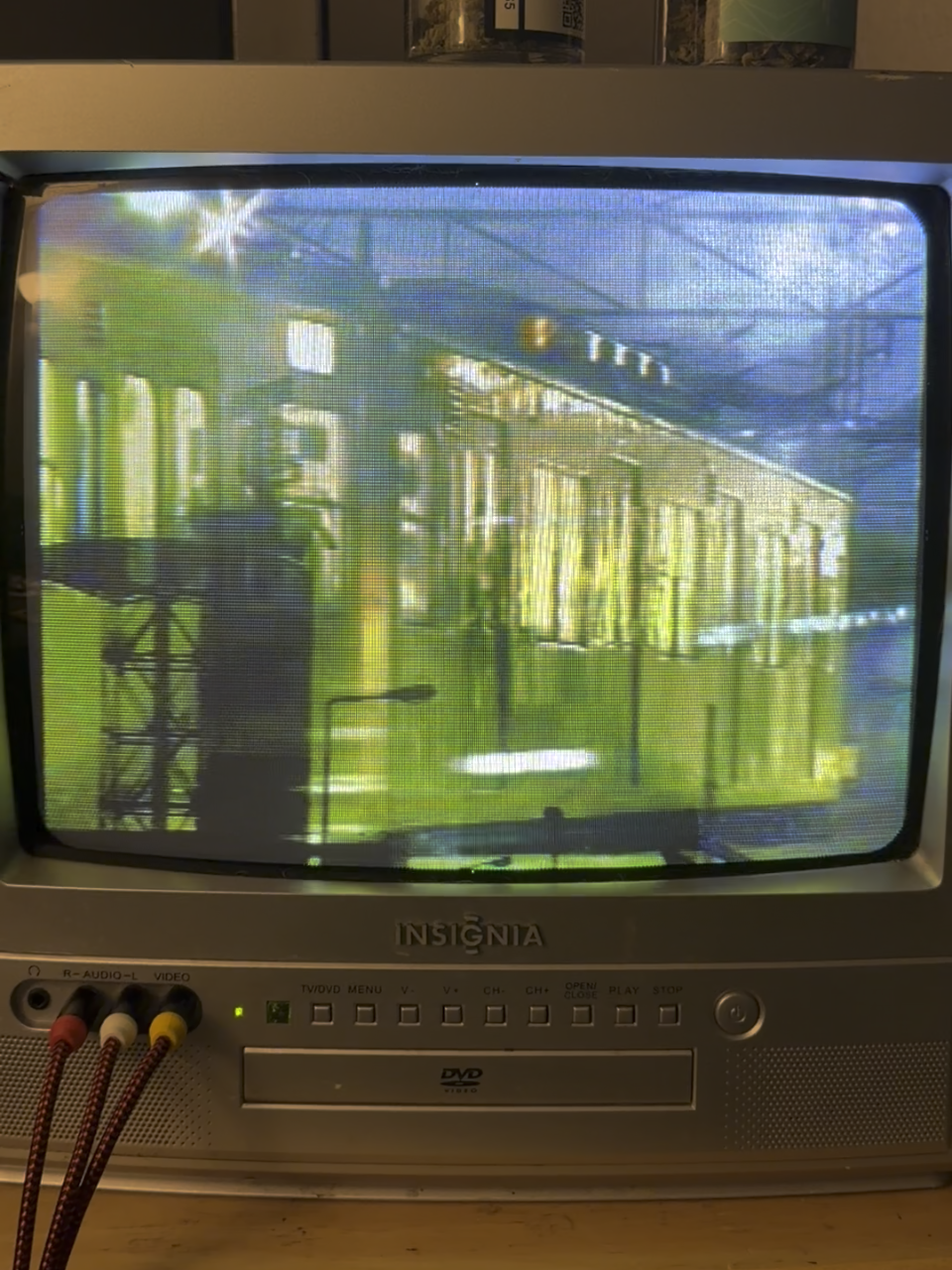

| NS-13CTV | Insignia |
|
4:3 13" | 240p 480i |
RF Composite (x2) YPbPr |

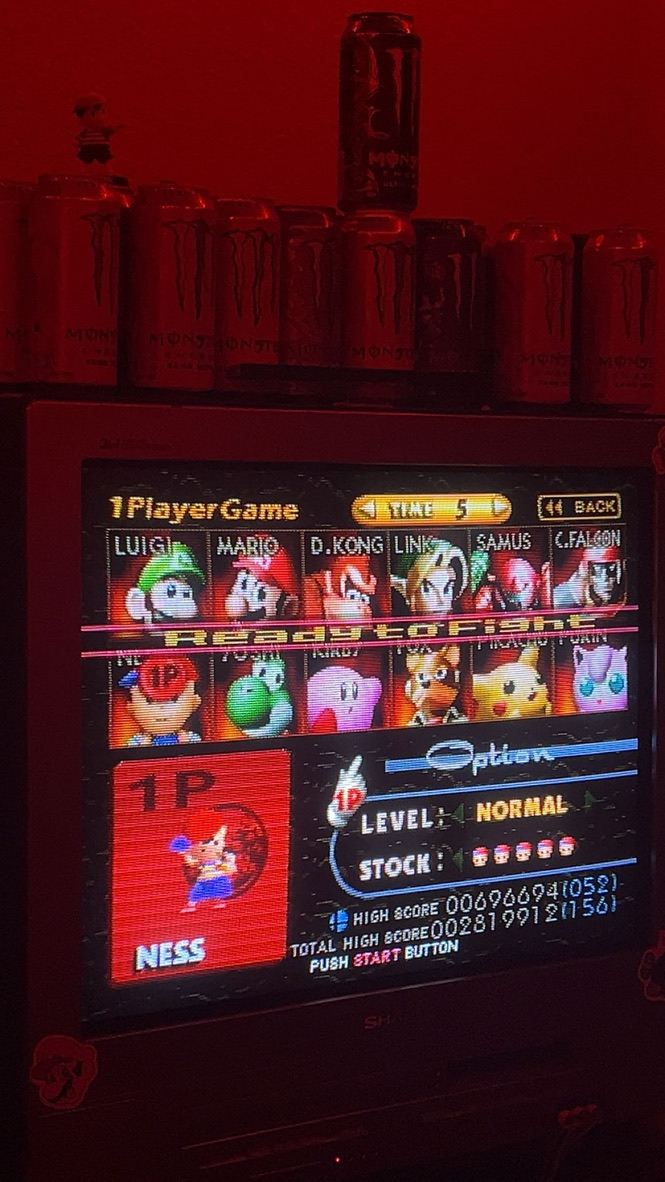

| 27DV-S100 | Sharp |
|
4:3 27" | 240p 480i |
RF Composite (x2) |

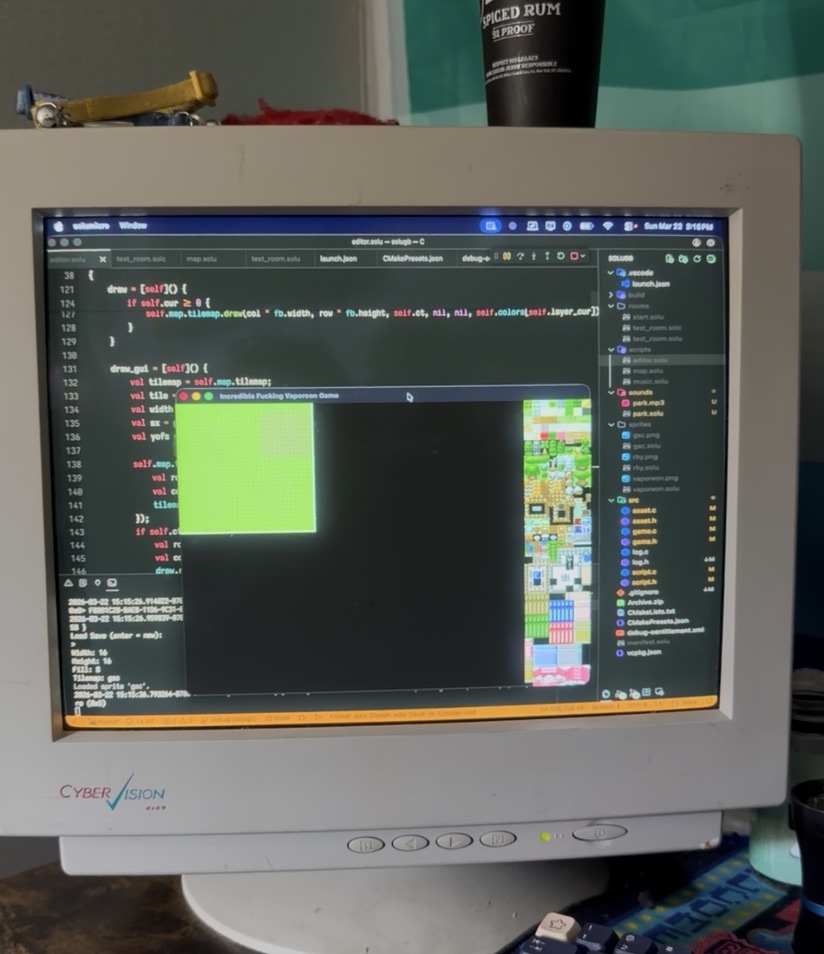

| ds69 (x2) | CyberVision |
|
4:3 15" | 1024x768 optimal Refresh Variable |
VGA |
